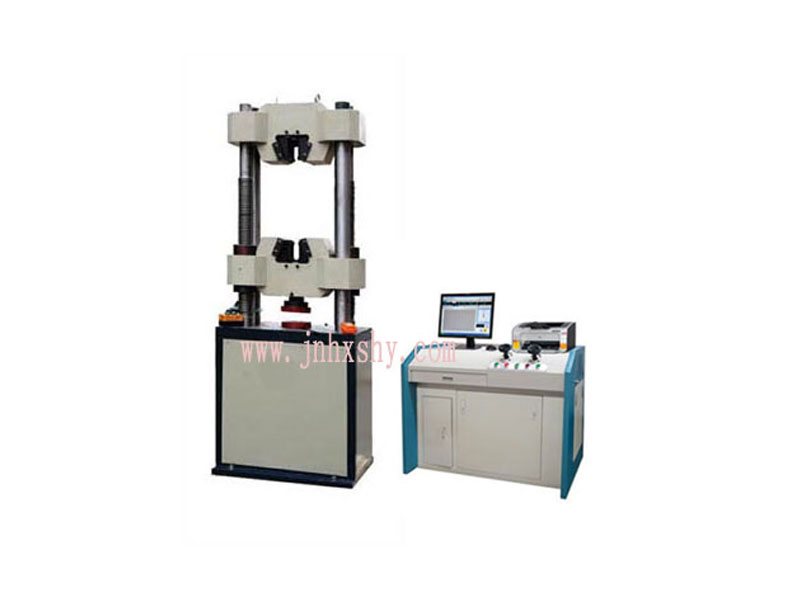

WEW-B Series Computer Display Hydraulic Universal Tester

WEW-B series computer display hydraulic universal testing machine is mainly used for the tensile, compression, bending, cutting and other mechanical property tests, in accordance with the GB/T 228-2010 and GB/T 7314-2005 standards.

This machine is equipped with computer, printer, optical-electricity encoder and universal testing software, able to evaluate the tensile strength, yield strength, non-proportional extension strength, percentage elongation, elastic modulus and other mechanical properties. Testing results can be inquired and printed out together with relative testing datum and six curves, including force-displacement, force-deformation, stress-displacement, stress-deformation, force-time and deformation-time. Besides, the tester has self-checking function, able to detect faults by itself.

This testing machine is an ideal testing instrument for industrial and mining enterprises, research institutes, colleges, engineering quality supervision stations and other departments.

Specifications	WEW-100B	WEW-300B	WEW-600B	WEW-1000B
Maximum testing force	100kN	300kN	600kN	1000kN
Measuring range	Equivalent 3 block	Equivalent 3 block	Equivalent 3 block	Equivalent 3 block
Force measuring range	4%-100%F.S	4%-100%F.S	4%-100%F.S	4%-100%FS
Testing force indication relative error	≤±1%	≤±1%	≤±1%	≤±1%
Resolution	0.1kN	0.1kN	0.1kN	0.1kN
Deformation precision	±0.5%FS	±0.5%FS	±0.5%FS	±0.5%FS
Stretching space	550mm	550mm	600mm	650mm
Gripping method	Hydraulic (manul) gripping	Hydraulic gripping	Hydraulic gripping	Hydraulic gripping
Diameter of round specimen	φ6-26mm	Φ6-26mm	Φ13-40mm	Φ13-40mm
Thickness, &nbs, p;of flat specimen	0-15mm	0-15mm	0-30mm	0-30mm
Maximum distance between bending fulcrum	450mm	450mm	450mm	450mm
Motor power of oil pump	1.1kW	1.1kW	1.1kW	1.1kW
Motor power of beam moving	0.75kW	0.75kW	0.75kW	0.75kW
Host dimention ㎜	700×560×1900	700×560×1900	720×580×2000	880×660×2100
Host weight	1900Kg	1900Kg	2200Kg	2700Kg
